12/24/48V | Wall Mount Rectifier | RW Range

12/24/48V | Wall Mount Rectifier | RW Range

These highly efficient rectifiers offer a range of output voltages and power levels. Compact and easy to install, the RW Series of robust, reliable rectifiers are convection-cooled and available with temperature compensation, internal low voltage disconnect (LVD) and alarm card with relay outputs.

Key Features & Benefits

  • Convection-cooled
  • Thermally protected
  • Input/output voltage and current protected
  • Automatic float/boost charge cycle

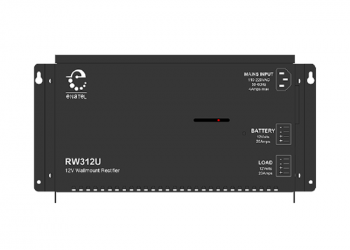

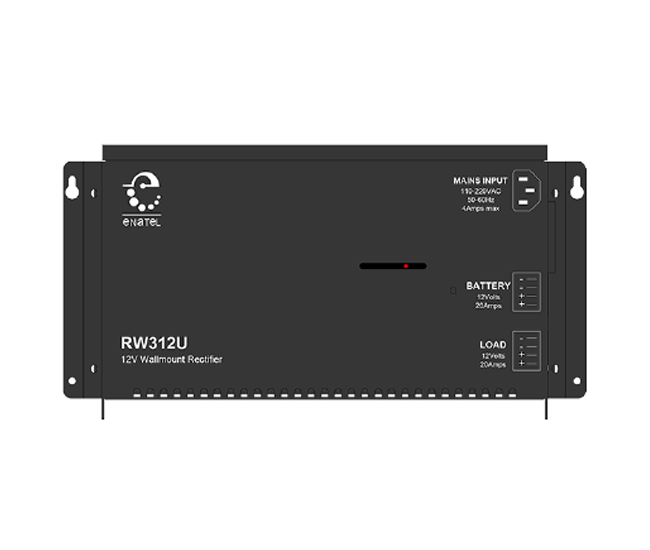

RW Series Wall-Mount Rectifier
ModelRW748URW624URW512U
Nominal Input Voltage:110–220V AC, 50/60Hz110–220V AC, 50/60Hz110–220V AC, 50/60Hz
Input Voltage Range:90–275V AC (reduced power below 100V AC)90–275V AC (reduced power below 100V AC)90–275V AC (reduced power below 100V AC)
Power Factor:>0.99>0.99>0.99
Peak Efficiency:88%87%85%
Maximum Input Current:8.5A8.5A8.5A
Nominal Output Voltage:48V DC24V DC12V DC
Output Voltage Range:45-60V DC22-30V DC11.5-15V DC
Maximum Output Current:12.0A22.0A35.0A
Maximum Output Power:700W600W500W
Ambient Temperature:-10ºC to +50ºC-10ºC to +50ºC-10ºC to +50ºC
Dimensions (W, H, D):311.0mm, 163.0mm, 62.0mm311.0mm, 163.0mm, 62.0mm311.0mm, 163.0mm, 62.0mm
Weight:1.50kg1.50kg1.50kg

These highly efficient rectifiers offer a range of output voltages and power levels. Compact and easy to install, the RW Series of robust, reliable rectifiers are convection-cooled and available with temperature compensation, internal low voltage disconnect (LVD) and alarm card with relay outputs.

They can be used as standalone power sources or can be operated in parallel to provide redundancy or higher output ratings.

Choose from a range of internal options including load disconnect, current indicators, alarm and control interface and auto float/boost. Custom configurations can be specified and additional features can be added.

New Zealand-made to guarantee design, manufacture and process integrity, our robust proven conversion topology utilizes only the highest specification components, ensuring unparalleled reliability benefits.
